SpringBoot进阶 - 自定义starter
约 869 字大约 3 分钟
SpringBoot进阶 - 自定义starter
如何将自己的模块封装成starter， 并给其它springBoot项目使用呢？ 本文主要介绍在Springboot封装一个自定义的Starter的一个Demo，从创建一个模块->封装starter->使用。 @pdai
思路
创建模块，封装starter，最后使用starter.
- 1 - 创建一个Demo Project，模拟一个需要被封装的DemoModule模块，其中核心方法为exeModuleMethod
- 2 - 通过starter封装可以直接初始化DemoModule的实例到Spring容器
- 3 - 在Maven中引入starter，且在yml中配置相应到参数即可直接初始化DemoModule的实例
- 4 - 在应用中注入DemoModule即可使用其exeModuleMethod方法
新建项目
- pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.pdai</groupId>
<artifactId>demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<!-- 注意不要引入Springboot模块-->
</dependencies>
<build>
</build>
</project>
- 创建一个测试模块
package com.pdai.demo.module;
/** * */
public class DemoModule {
private String version;
private String name;
public String exeModuleMethod() {
return "Demo module, name = " + name + ", version = " + version;
}
public String getVersion() {
return version;
}
public void setVersion(String version) {
this.version = version;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}

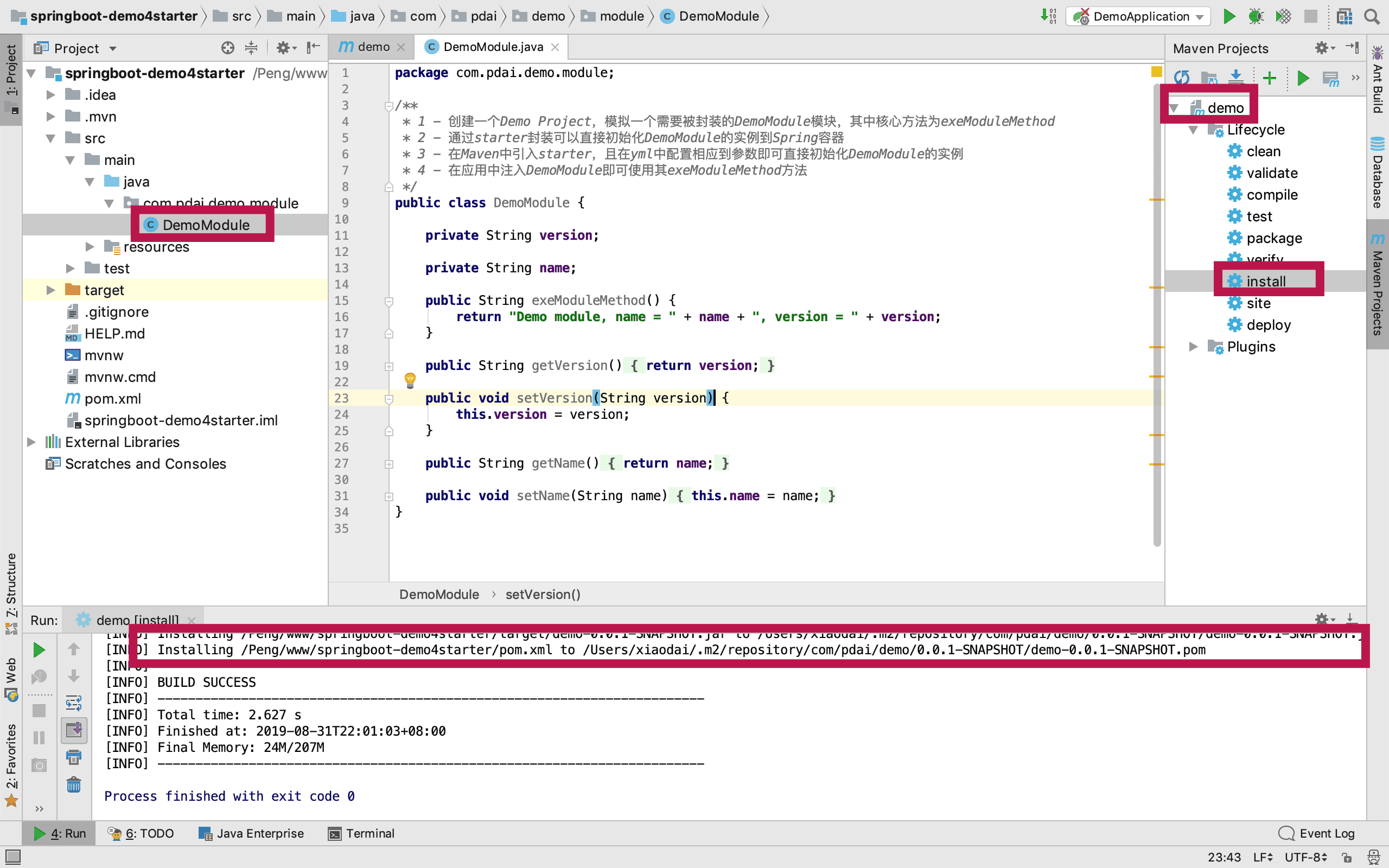

- install
封装Starter
- 创建项目 - pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.pdai</groupId>
<artifactId>demo-springboot-starter</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo-springboot-starter</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-autoconfigure</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>com.pdai</groupId>
<artifactId>demo</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
</project>
- Properties
package com.pdai.demospringbootstarter;
import org.springframework.boot.context.properties.ConfigurationProperties;
@ConfigurationProperties(prefix = "com.pdai")
public class DemoProperties {
private String version;
private String name;
public String getVersion() {
return version;
}
public void setVersion(String version) {
this.version = version;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
- AutoConfiguration
package com.pdai.demospringbootstarter;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
@EnableConfigurationProperties(DemoProperties.class)
public class DemoAutoConfiguration {
@Bean
public com.pdai.demo.module.DemoModule demoModule(DemoProperties properties){
com.pdai.demo.module.DemoModule demoModule = new com.pdai.demo.module.DemoModule();
demoModule.setName(properties.getName());
demoModule.setVersion(properties.getVersion());
return demoModule;
}
}
- spring.factory
在META-INF下创建spring.factory文件
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
com.pdai.demospringbootstarter.DemoAutoConfiguration
- install
使用starter
只需要在application.yml中
- application.yml
com:
pdai:
name: DEMO
version: v1
- pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.pdai</groupId>
<artifactId>demo-usage</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>demo-usage</name>
<description>Demo starter usage</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>com.pdai</groupId>
<artifactId>demo-springboot-starter</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
- app
package com.pdai.demo.usage;
import com.pdai.demo.module.DemoModule;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@SpringBootApplication
@RestController
public class DemoUsageApplication {
public static void main(String[] args) {
SpringApplication.run(DemoUsageApplication.class, args);
}
@Autowired
private DemoModule demoModule;
@GetMapping("demo")
public String demo(){
return demoModule.exeModuleMethod();
}
}
- 输出
http://localhost:8080/demo
Demo module, name = DEMO, version = v1
代码实例
@see https://github.com/realpdai/springboot-starter-demo
